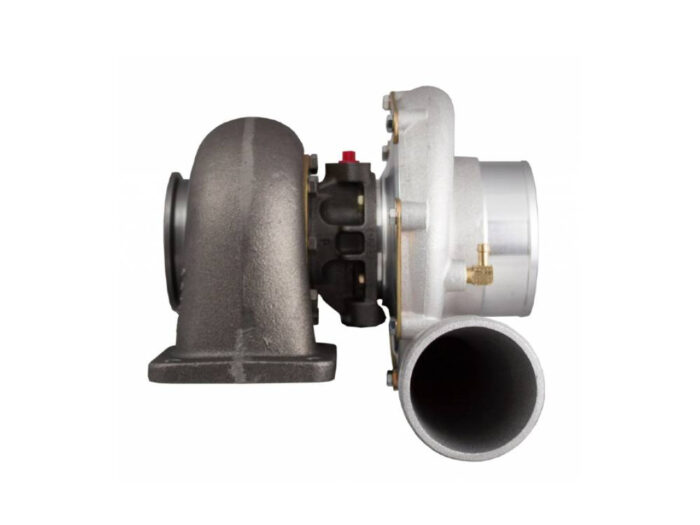

VTT Precision 7675 LS-Series

Description

Featuring a 76mm cast compressor wheel and a 75mm turbine wheel, this turbocharger is an excellent match for the widely-popular LS family of engines.

Purpose built with the LS-enthusiast in mind, this unit features a 360* hydrodynamic bearing system for exceptional reliability and increased thrust capacity. The turbocharger is available with (3) different turbine housing A/R ratios (T4 .81 A/R, T4 .96 A/R or AGP 1.27 A/R), making it ideally suited for a single or twin turbo application. Both options feature a 3 5/8" v-band discharge for easy downpipe installation.

Additionally, the LS-Series PT7675 turbocharger comes standard with our ported H cover (4" inlet and 3" outlet) to protect against compressor surge.

- LS-Series PT7675 w/T4 undivided .81 A/R (Turbocharger part number 02207012219)
- LS-Series PT7675 w/T4 undivided .96 A/R (Turbocharger part number 02207012229)

• LS-Series PT7675 w/AGP T4 undivided 1.27 A/R

• Optional T51R Mod is where we plug and then CNC machine the inlet of the compressor housing to amplify the turbo whine and whistle. Keep in mind this modification is done after the order is placed and typically ads a week or two before the order is shipped. However, sometimes it can take longer and maybe even up to 4 weeks. If you have ordered other finishing options like ceramic or polishing, it may add additional time on top of the typical 2-3 weeks before your order ships. Because of the labor intensive work and machine time needed, there can be delays beyond what we quote. We do take special care to every order to prepare for shipping and want to make sure you get the highest quality parts and service. We are confident that the quality you receive is worth the wait. We appreciate your patience while we work.

Features

Additional information

Compatibility

Feel free to contact us at info@Performance Parts Direct.co.uk should you wish to double check!

Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

Part Number

PTE-7675LS-.81-A/R-T4-Tangential-V-Band-1-1-1 (.81 A/R T4 Tangential V-Band Outlet (3-5/8 OD))

PTE-7675LS-.96-A/R-T4-Tangential-V-Band-1-1-1 (.96 A/R T4 Tangential V-Band Outlet (3-5/8 OD))

PTE-7675LS-AGP-1.27-A/R-T4-Tangential-V-Band-1-1-1 (AGP 1.27 A/R T4 Tangential V-Band Outlet (3-5/8 OD))

PTE-7675LS-.84-A/R-Divided-T4-V-Band-Outlet-1-1-1 (.84 A/R Divided T4 V-Band Outlet (3-5/8 OD))

PTE-7675LS-1.00-A/R-Divided-T4-V-Band-Outlet-1-1-1 (1.00 A/R Divided T4 V-Band Outlet (3-5/8 OD))

PTE-7675LS-1.15-A/R-Divided-T4-V-Band-Outlet-1-1-1 (1.15 A/R Divided T4 V-Band Outlet (3-5/8 OD))

PTE-7675LS-1.32-A/R-Divided-T4-V-Band-Outlet-1-1-1 (1.32 A/R Divided T4 V-Band Outlet (3-5/8 OD))

More Information

Manufactured by

Vegas Turbocharger Technologies
