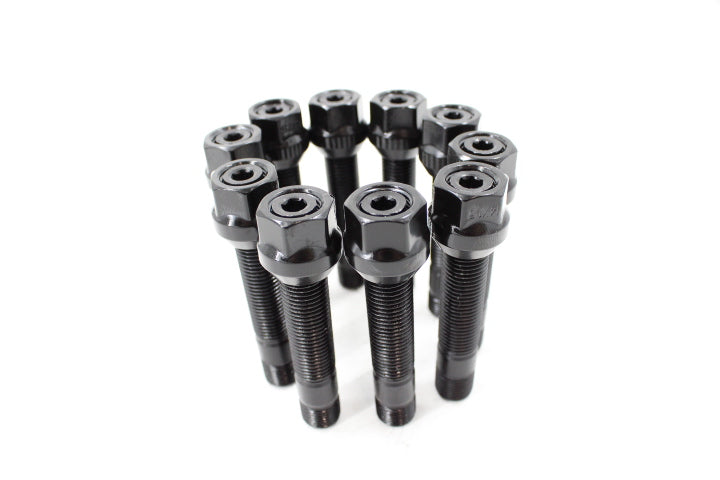

VTT BMW/Toyota 5×112 to 5×114 Bolt Pattern Conversion Kits

Name: VTT BMW/Toyota 5×112 to 5×114 Bolt Pattern Conversion Kits
Brand: VTT
SKU: VTT-BMW-TOY-STUD-CONVERSION-10
Price: 82.49 GBP
Availability: InStock

SKU: VTT-BMW-TOY-STUD-CONVERSION-10

Price

£82.49 inc. VAT

Best Price Across the UK

Best Value

Dispatch within 1-2 working days

Description

Run compatible 5×114.3 wheels on supported BMW and Toyota 5×112 hubs with a purpose-built stud conversion. The stepped stud uses an M14x1.25 hub-side thread and an M12x1.50 wheel-side thread for broad wheel and lug-nut compatibility.

Stud Specifications

85 mm overall length
75 mm total threaded length
10 mm bull nose
12 mm short hub-side thread
12 mm unthreaded shank
48 mm wheel-side thread
M14x1.25 hub-side thread
M12x1.50 wheel-side thread
Cold-rolled grade 10.9 steel
Black-oxide finish

Package Options

Available as a 10-piece set for one axle or a 20-piece set for the complete vehicle. Matching black open-end lug nuts are included.

Critical Wheel Requirement

The wheel mounting holes must have adequate clearance for an M14 stud. Wheels drilled only for M12 hardware will not fit and must not be forced onto the studs. Verify wheel-hole diameter, offset, brake clearance, and hub-center compatibility before installation.

Centering and Installation

No centering sleeves are used; the lug seats center the wheel. Apply medium-strength threadlocker to the short hub-side thread, install the studs to 10 ft-lb, mount the wheel, and tighten the lug nuts in a star pattern to the vehicle manufacturer’s specification. Recheck torque after 25–50 miles.

Finish Care

Black oxide is a protective conversion finish, not a permanent barrier coating. Exposure to moisture and road salt can produce surface oxidation. A light film of WD-40 or a comparable corrosion inhibitor can help preserve the finish.

Compatibility

Please make sure this part matches your vehicle before ordering.
