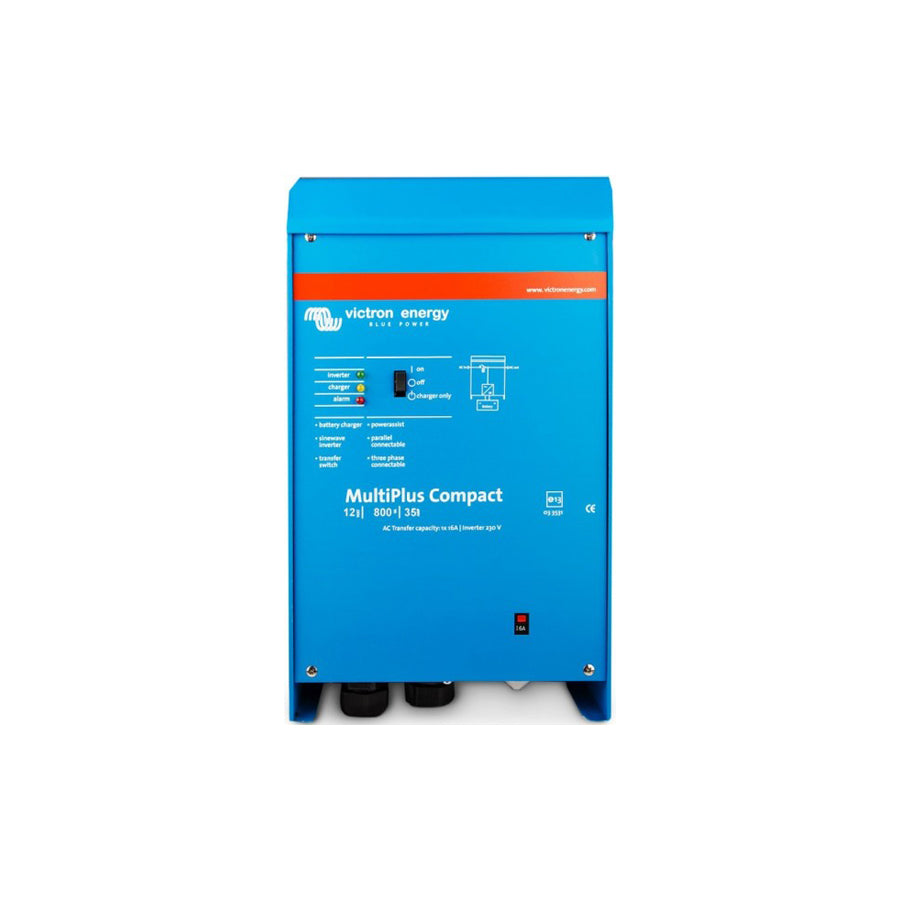

Victron Energy MultiPlus Compact 12/800/3516 230V VE.Bus CMP128010000
SKU: VICTRON-ENERGY-CMP128010000
Price
£465.31
inc. VAT
Best Price Across the UK
Best Value
In Stock — Dispatched in 24 hrs
Description
This is Victron Energy MultiPlus Compact 12/800/3516 230V VE.Bus CMP128010000.
Features
Specification
| Input voltage range (V DC) | : | 9,5 17 V |
| Weight (kg) | : | 10 |
| Charge current house battery (A) | : | 35 |
| Maximum efficiency (%) | : | 92 |
| Peak power (W) | : | 1600 |
| Cont. output power at 25������������C (VA) | : | 800 |
| Common Characteristics | : | Humidity (non-condensing): max 95%, Material & Colour: aluminium (blue RAL 5012) , Operating temp. range: -40 to +65������������C (fan assisted cooling) |
| VE.Bus communication port | : | For parallel and three phase operation, remote monitoring and system integration |
| Programmable relay | : | Yes |
| Dimensions | : | 375 mm x 214 mm x D110 mm |
| 230 V AC-connection | : | G-ST18i connector |
| Brand | : | Victron Energy |
| Battery-connection | : | battery cables of 1.5 meter |
| Remote on-off | : | Yes |
| Additional Features | : | PowerAssist, PowerControl, Programmable relay |
| Transfer Switch (A) | : | 16 |
| Protection | : | a - g |
| Tempertaure sensor | : | Yes |
| Input voltage | : | 187-265 VAC |
| Output Voltage | : | Output voltage: 230 VAC ������������ 2% |
| Warranty | : | 5 Years |
| Zero load consumption | : | 8W |
Compatibility
Please make sure your current battery has the matching required specification to ensure a like for like replacement.
Compatibility Check
Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car information before proceeding to checkout.
Part Number
VICTRON ENERGY-CMP128010000
More Information
Manufactured by
VICTRON ENERGY
