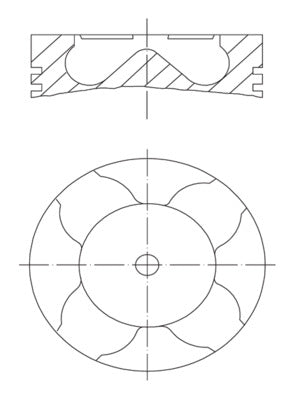

Mahle 2290600 - Piston with rings and pin

Description

This is Mahle 2290600 - Piston with rings and pin



Features

Standard Size [STD]:	yes
Cylinder Bore [mm]:	128,0 mm
Length [mm]:	141,8 mm
Compression Height [mm]:	89,75 mm
Bolt Length [mm]:	105,0 mm
Bolt Head Diameter [mm]:	46,0 mm
Recess Depth 1 [mm]:	22,7 mm
Recess Diameter [mm]:	80,0 mm
Valve Pocket Depth 1 [mm]:	1,9 mm
Machined:	with cut-out for oil jet
Surface:	Coated
Supplementary Article/Info 2:	with piston ring carrier
Production Number:	128 L 74
Component Number:	1. T 4.0 CrK
Component Number:	2. M 3.0 Cr P
Component Number:	3. DSF 4.0 Cr
Packaging length [cm]:	15,0 cm
Packaging width [cm]:	15,00 cm
Packaging height [cm]:	21,00 cm
Net Weight [g]:	3765 g



Compatibility

Man TGA F2000 D2866LF31 D2866LF32 D2866LF36 D2866LF37 D2866LF39 D2866LF40 D2866LF41 D2866LF43 1998+

Feel free to contact us at info@Performance Parts Direct.co.uk should you wish to double check!



Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



Part Number

MAHLE-2290600



More Information

Manufactured by

Mahle
