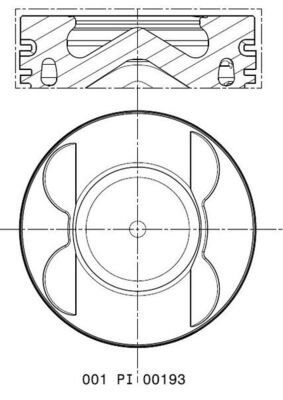

Mahle 001PI00193000 - Piston with rings and pin

Description

This is Mahle 001PI00193000 - Piston with rings and pin



Features

Cylinder Bore [mm]:	83 mm
Length [mm]:	71,7 mm
Compression Height [mm]:	45,65 mm
Bolt Length [mm]:	66 mm
Bolt Head Diameter [mm]:	30 mm
Recess Depth 1 [mm]:	14,65 mm
Recess Diameter [mm]:	43,4 mm
Machined:	with cut-out for oil jet
Supplementary Article/Info 2:	with piston ring carrier
Supplementary Article/Info 2:	with cooling duct
Top Land Height [mm]:	10 mm
Production Number:	83 L 188
Component Number:	1. R 2 IF CrK
Component Number:	2. M 2 P
Component Number:	3. DSF 2 Cr
Packaging height [cm]:	12,80 cm
Packaging length [cm]:	9,5 cm
Packaging width [cm]:	9,50 cm
Net Weight [g]:	915 g



Compatibility

MERCEDES

Feel free to contact us at should you wish to double check!



Compatibility Check

Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



Part Number

MAHLE-001PI00193000



More Information

Manufactured by

Mahle
