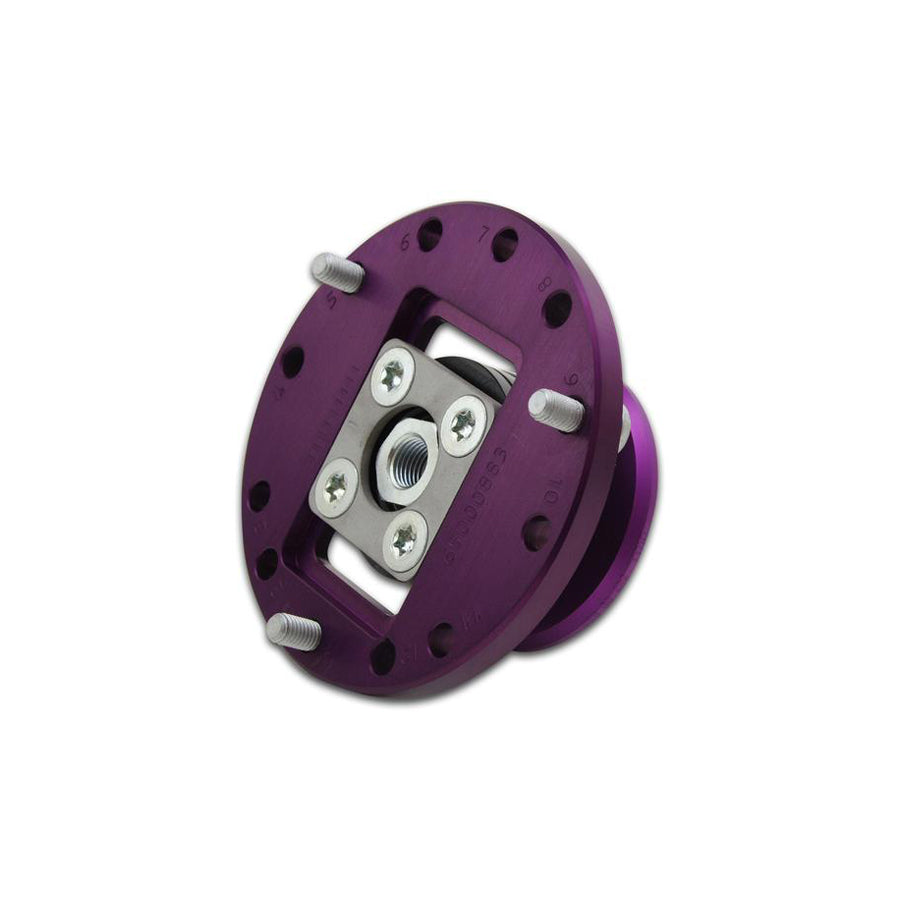

KW 19000763 BMW E46 E86 E85 Clubsport Top Mounts FA - With Camber Adjustment
SKU: 19000763
Price
£219.14
inc. VAT
Best Price Across the UK
Best Value
In Stock — Dispatched in 24 hrs
Description
KW Clubsport aluminium unibal top mounts have been tranfered from motorsports to the street.
We also offer adjustable top mounts made from high tensile aluminium alloy for our KW Clubsport kits. Camber and caster (optional) adjustments are available on certain applications.
Designed for the toughest race track in the world: the Nurburgring Nordschleife
A special KW sealing system avoids an intrusion of dirt and water into the free of play and preloaded unibal bearings. Furthermore axial bearings allow rotation of springs at McPherson struts.
- Scaled camber adjustment (optionally caster adjustment)
- Sealed and preloaded spherical bearing
- Axial bearings allow rotation of springs at McPherston struts
- Made of tool steel (100Cr6): 58 to 64 HRC - hard chrome plated
- PTFE surface inlay, stainless steel outer ring (X20Cr13)
Features
| Front Lowering (mm) | : | 40 to 75 |
| Rear Lowering (mm) | : | 30 to 60 |
| Brief description | : | Clubsport top mounts FA (with camber adjustment) |
| Colour | : | Purple |
| Approval | : | Without (according to German law not permissible) |
| Material | : | Aluminum |
| Content of delivery | : | 1 piece |
| Manufacturer Part No | : | 218206590 |
| Mounting position | : | Front axle |
| Version | : | Clubsport |
| Product | : | Top mount |
| Camber adjustment | : | With |
| Product Category | : | Top mount |
| Note (Product) | : | Only be used in combination with KW clubsport coilover kit |
| Demand | : | Race track |
Compatibility
- 3 SERIES
- 3 Saloon (E46) (12/1997-05/2005)
- 316i / 318d / 318i / 320d / 320i / 323i / 325i / 328i / 330d / 330i
- 3 Convertible (E46) (04/2000-12/2007)
- 318Ci / 320Cd / 320Ci / 323Ci / 325Ci / 330Cd / 330Ci
- 3 Coupe (E46) (12/1998-07/2006)
- 316Ci / 318Ci / 320Cd / 320Ci / 323Ci / 323i / 325Ci / 325i / 328Ci / 330Cd / 330Ci
- 3 Touring (E46) (06/1999-07/2005)
- 316i / 318d / 318i / 320d / 320i / 323i / 325i / 328i / 330d / 330i
- Z SERIES
- Z4 Coupe (E86) (03/2006-01/2009)
- 2.5i / 3.0si / M
- Z4 Roadster (E85) (09/2002-12/2009)
- 2.0i / 2.2i / 2.5i / 2.5si / 3.0i / 3.0si / 3.2 Z4 / M
Note:
- Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
- When using original tires, wheel offset spacers may be required
- Clubsport coilover with top mount: only with front axle top mount available
Compatibility Check
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
Part Number
19000763
More Information
Manufactured by
KW
Warranty
- Street Coilovers , Variant 1, Variant 2, Variant 3, Street Comfort - Limited Lifetime Warrantee
- Bushings, Bump stops and Ball Joints - 1 Year
- Club Sport Coilovers, 2 way Race Coilovers, 3 way Race Coilovers - No warrantee.
EAN
4250580411987
