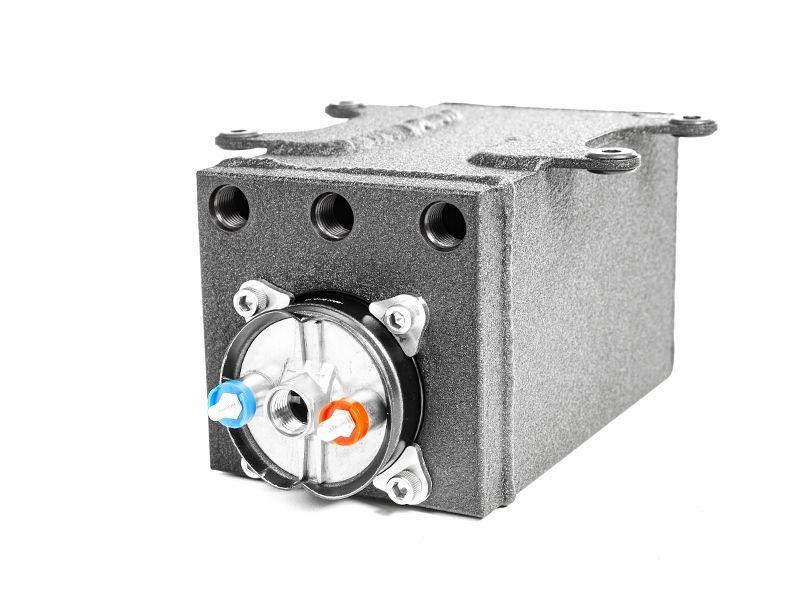

Integrated Engineering Single Fuel Pump Surge Tank Kit

Integrated Engineering

Integrated Engineering Single Fuel Pump Surge Tank Kit

SKU: IEFUU3

Price

£227.99 inc. VAT

Best Price Across the UK

Best Value

Dispatch within 1-2 working days

Description

Prevent fuel starvation issues and provide a reliable constant draw of fuel with an IE submerged pump surge tank. The surge tank provides a constant fuel supply, even under aggressive cornering, acceleration, and high fuel consumption situations. The universal design will work with any traditional return style fuel system and supply enough fuel to power up to 800HP!

Features

Universal fitment for any return style fuel system
Innovative submerged pump design
For use with two pumps supporting up to 800+HP
Leak-free o-ring boss AN ports for easy integration
Black wrinkle powder coated for a durable finish
Includes mounting hardware, O-ring, and assembly lube
Vibration damping mounts and mounting hardware included
Always have fuel available with a 1.5-liter fuel capacity

Recommended Surge Tank Use

Integrated Engineering's innovative surge tank design is essential for drag race, track, and drift cars. During hard cornering or acceleration, the stock pump will frequently have fuel starvation due to the fuel tank angles. The surge tank is also a great solution for mounting and plumbing high powered street cars. Once installed, you can use a factory in-tank or inline pump to feed the surge tank and keep it full in most applications.

Fuel Pump Options

Our surge tank design is compatible with either the AEM 380LPH fuel pump or the Bosch 044 fuel pump only. When using a Bosch 044 series fuel pump, this setup can support up to 600HP. The AEM pump can supply fuel for over 800HP on standard fuels and is available to purchase with your surge tank. For more aggressive power setups, an IE dual submerged fuel tank is also available that houses two fuel pumps.

Surge Tank Measurements

6.8" long
4" wide (6" wide from mounting tab ends)
4" deep

Surge Tank Construction

The pumps are O-ring sealed and securely clamped into place using stainless mount brackets. To provide a leak-proof supply of fuel to the surge tank three -6AN o-ring boss inputs/outputs have been machined to the top plate. The -6 o-ring boss inputs/outputs can be customized for a large variety of fuel fittings such as AN bends, AN straights, stainless hose connections, push lock hose, braided lines, hard lines, and more. The back of the machined top plate has been fully pocketed out to remove excess weight. The fuel pump is secured to the top plate with stainless brackets and hardware providing reliable operation.

Compatibility

Universal Audi Volkswagen

Fuel Pump Compatibility

1 X AEM 380LPH FUEL PUMPS
1 X BOSCH 044 FUEL PUMPS

Please note: Fuel pump sold separately.

Installation

IE surge tanks are a universal part that can be fitted to many different vehicles and fuel systems. The installation will vary depending on many variables that will differ on all builds.
