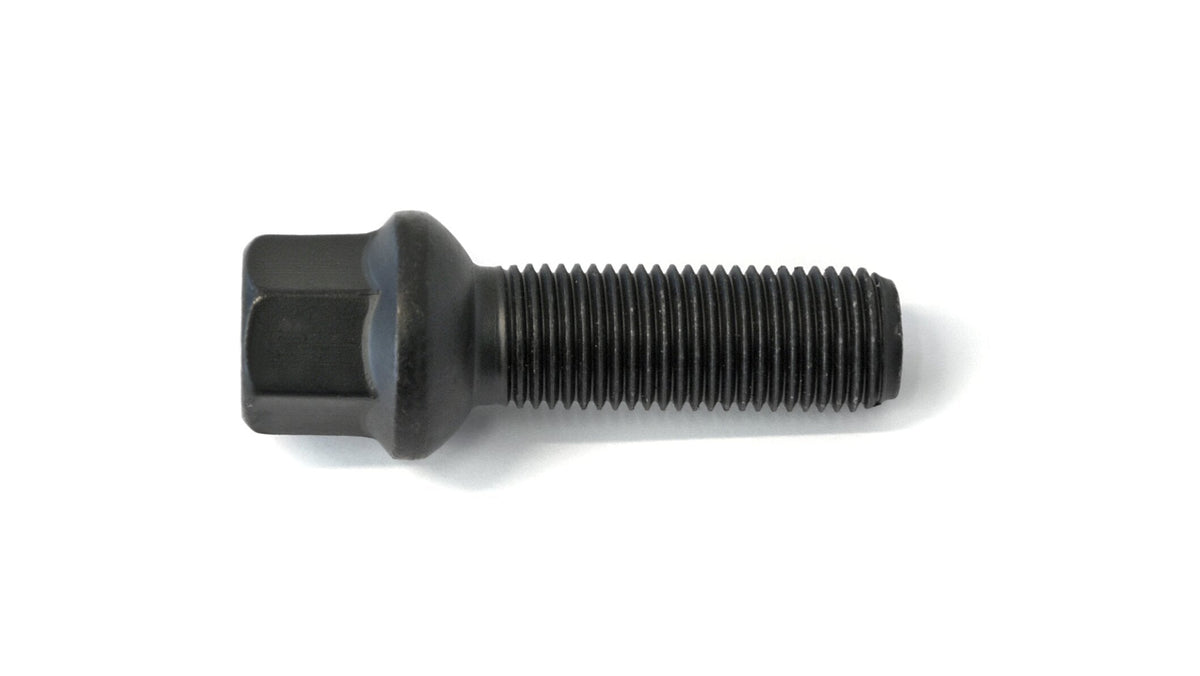

H&R Wheel screw M14 round head R14mm

Description

H&R Wheel screw M14 round head R14mm.

Features

• Approval: Registration not compulsory
• Thread size: M14x1,5
• Wheel fastening: Ball seat A/G

Notes from H&R

Please note additional information and vehicle-specific technical notes!

Important notes for wheel screw order: When using wheel spacers, the new wheel bolt must be longer by the thickness of the spacer! The current tightening torques (please note any differences between alloy wheels and steel wheels) are the vehicle manufacturer's specifications for the fastening, respectively the wheel manufacturer ones when using aftermarket wheels as well as the part approval for the wheel spacers. Check the minimum screw-in depth of the longer wheel bolts! Please note the following minimum screw-in depths: Thread M12x1.25 = min. 8.0 turns = approx. 10 mm load-bearing thread Thread M12x1.5 = min. 6.5 turns = approx. 10 mm load-bearing thread Thread M12x1.75 = min. 6.5 turns = approx. 12 mm load-bearing thread Thread M14x1.25 = min. 9 turns = approx. 12 mm load-bearing thread Thread M14x1.5 = min. 7.5 turns = approx. 11 mm load-bearing thread Thread 1/2"UNF = min. 8.0 turns = approx. 11 mm load-bearing thread A too great screw-in depth can cause damage to the axles (brake parts, ABS control discs, etc.). For this reason, after fitting the wheels, these must be turned by hand in a relieved condition in order to check that the longer wheel bolts are free to rotate inwards. For some vehicles, the critical tolerance is by 2 mm.

Documents

• Product information

Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

Part Number

B1456802A

More Information

Manufactured by

H&R

EAN

4048419341563
