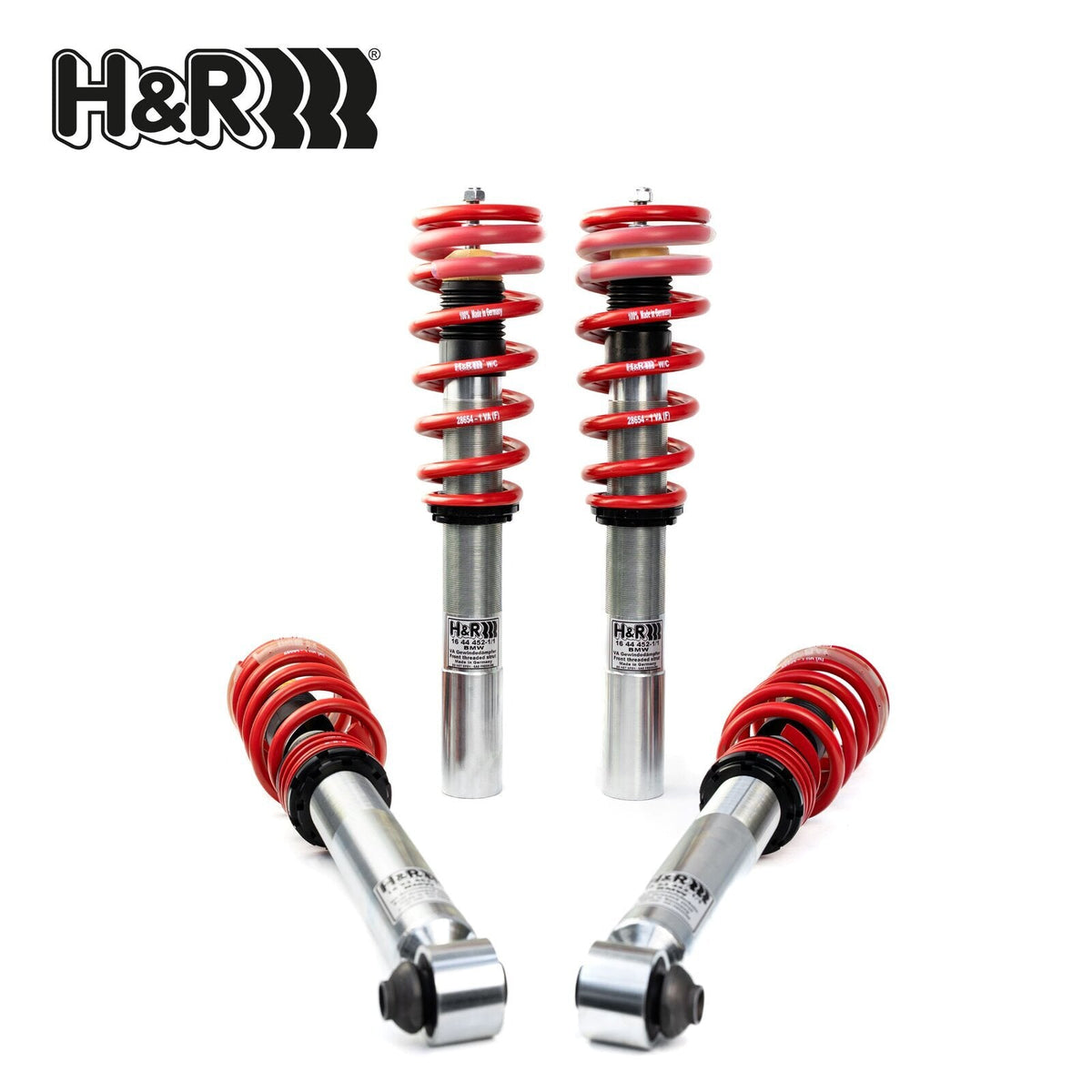

H&R Monotube coil overs BMW 5 (G30, F90)

Description

H&R Monotube coil overs for the BMW 5 (G30, F90).

Recognizing a demand for premium suspension components tuned for the street—with race car features like adjustable lowering—H&R engineers rose to the challenge. Received in the market with great success, H&R Coil Overs feature an innovative mono-tube gas shock construction. Using premium quality materials, H&R engineers fine-tune each coil over shock with a progressive rate spring to ensure better handling and premium ride comfort.

H&R lists part number 28654-2 against 15 vehicle variants (engine and build-date combinations). Please match your engine and build date to the compatibility list below before ordering; we also check your registration or VIN before dispatch.

Features

• Lowering, front axle: 20 to 45 mm
• Lowering, rear axle: 30 to 50 mm
• Axle load, front axle: up to 1270 kg
• Axle load, rear axle: up to 1360 kg
• Suspension: for vehicles without electronic suspension control
• Approval: Part Type Approval (PTA)

Notes from H&R

Please note additional information and vehicle-specific technical notes!

Note DCC: The installation of this suspension into cars with an electronic damping adjustment (DCC , Magnetic Ride etc.) must be done in an authorized (Audi - , VW-, etc.) workshop. The signal of the electronic damping adjustment in the display has to be deactivated (e.g. by interference-free complex resistance plugs which are connected to the valve connectors of the front and rear damping adjustment).

Vehicles fitted with an original (lower) sport suspension may show a different lowering/raising amount as they are already factory lowered.

Adjustable suspension kit is height adjustable within the dimensions as specified in the TÜV-report.

Depending on engine, gearbox/transmission, equipment vehicle tolerances lowering / raising may differ from the values given.

Documents

• Installation manual
• Installation manual 2
• Product information
• Service information
• Part type approval (PTA)

Compatibility

• BMW 5 (G30, F90) (09/2016-): 530 i xDrive (185kW, 1998 cc, 4 cyl.); 540 i xDrive (250kW, 2998 cc, 6 cyl.); 520 d xDrive (140kW, 1995 cc, 4 cyl.); 530 d xDrive (195kW, 2993 cc, 6 cyl.); 520 d xDrive (120kW, 1995 cc, 4 cyl.); 540 i xDrive (265kW, 2998 cc, 6 cyl.); 530 d xDrive (183kW, 2993 cc, 6 cyl.); 540 d xDrive (235kW, 2993 cc, 6 cyl.); 520 d Mild-Hybrid xDrive (140kW, 1995 cc, 4 cyl.); 530 i Mild-Hybrid xDrive (185kW, 1998 cc, 4 cyl.); 540 i Mild-Hybrid xDrive (245kW, 2998 cc, 6 cyl.); 530 d Mild-Hybrid xDrive (210kW, 2993 cc, 6 cyl.); 540 d Mild-Hybrid xDrive (250kW, 2993 cc, 6 cyl.); 530 d Mild-Hybrid xDrive (183kW, 2993 cc, 6 cyl.); 530 i Mild-Hybrid xDrive (180kW, 1998 cc, 4 cyl.)

Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

Part Number

28654-2

More Information

Manufactured by

H&R

EAN

4048419338259
