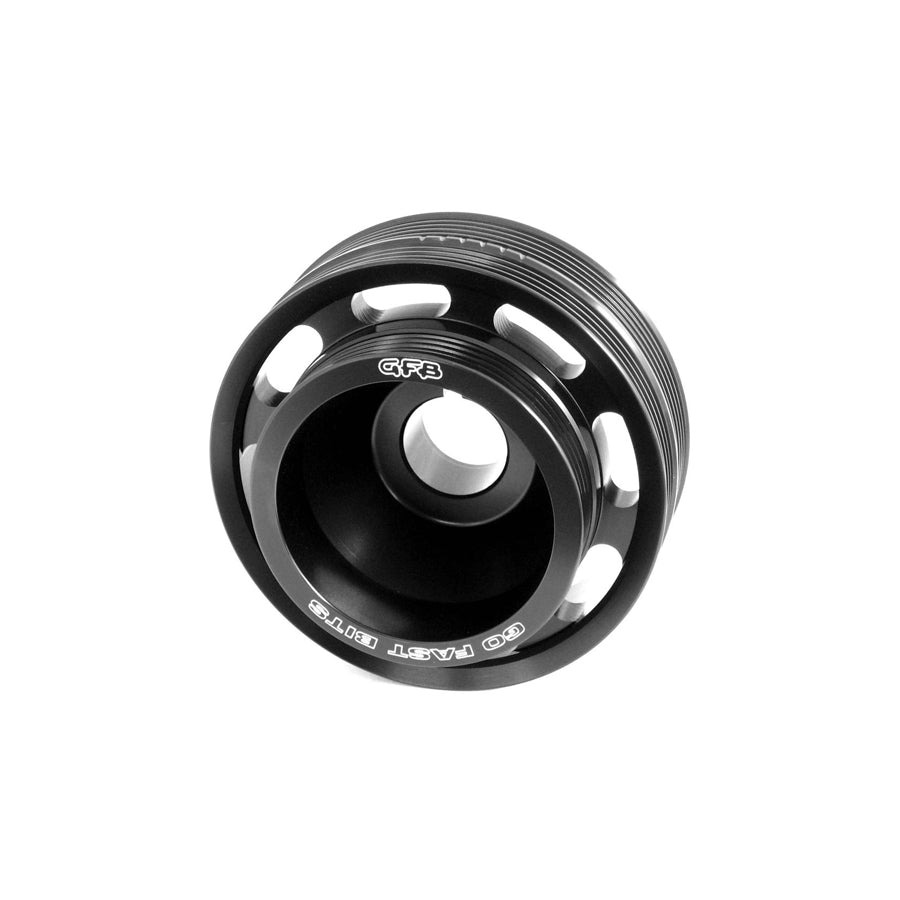

Go Fast Bits 2005 Nissan SR20DET Underdrive Crank Pulley

Description

Suits RWD versions of the SR20DET, as found in the S13-S15 200SX/Silvia and 180SX. Along with the performance improvement, this pulley benefits high-revving engines by underdriving the water pump, which helps prevent cavitation and subsequent overheating when drifting/circuit driving.

Does NOT suit non-turbo SR20 engines or transverse mounted SR20DET.

This pulley does require shorter belts which are not supplied, as the required belts will differ between engines.

Typically S13-14 models use a 4-rib belt on the power steering, whilst S15 models use a 3-rib belt. This pulley will accommodate either, but it is worth checking your engine before sourcing belts.

For 4-rib power steering, you need:

1x 5PK900
2x 4PK860

For 3-rib power steering, you need:

1x 5PK900
1x 4PK860
1x 3PK845-860

Features

All Go Fast Bits (GFB) products:

• Are meticulously engineered with high-performance materials, including advanced alloys and precision-machined components.
• They offer exceptional durability, enhanced performance, and are designed to withstand extreme conditions.
• Provide superior functionality, reduced noise, increased longevity, and are not limited by OEM design constraints.

Compatibility Check

Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.

Part Number

Go Fast Bits-2005

More Information

Manufactured by

Go Fast Bits
