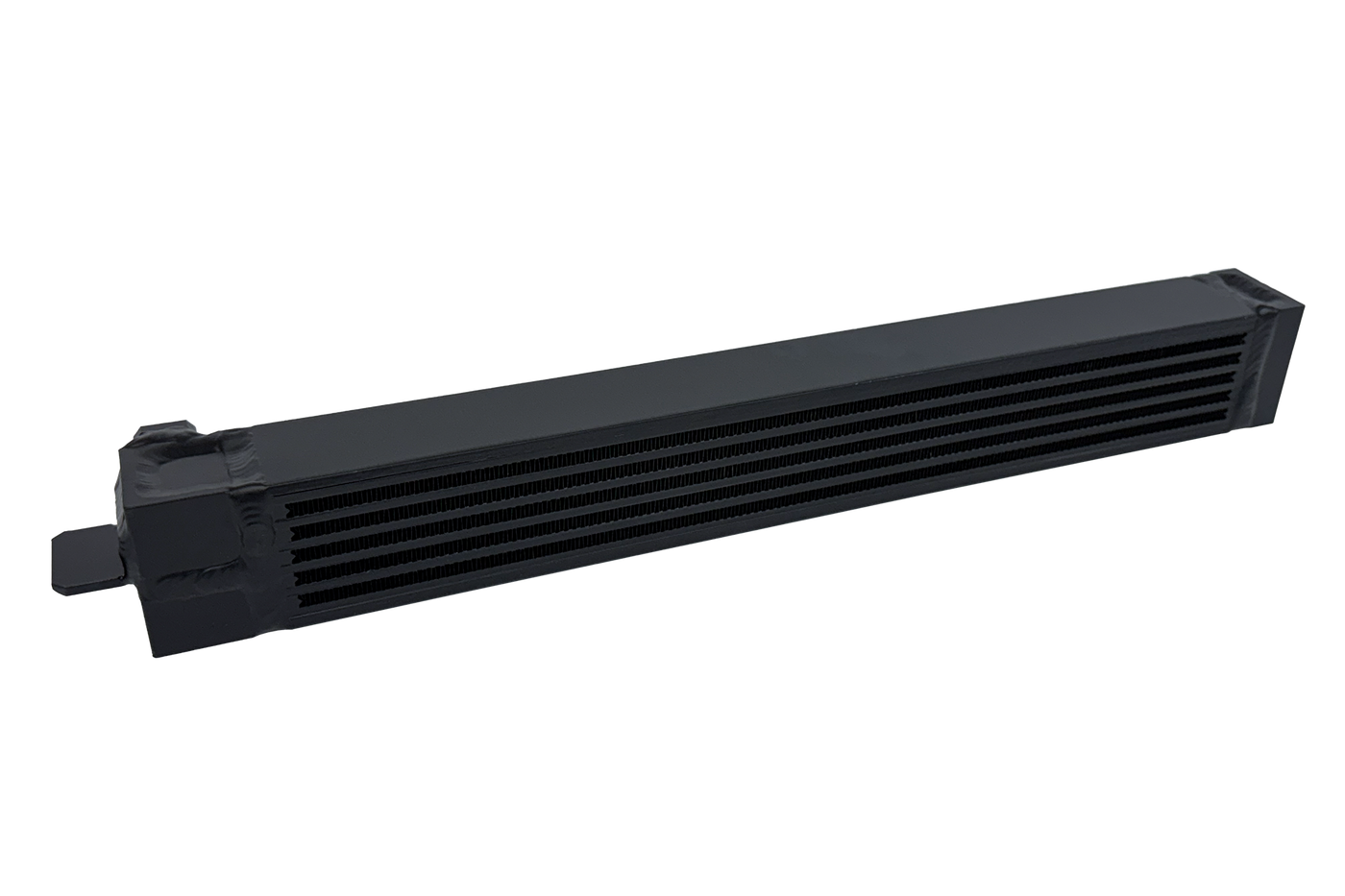

CSF BMW E36 Euro-Spec Engine Oil Cooler

Description

The E36 Euro Spec Oil Cooler is exactly what it sounds like. E36 M3’s in Europe came equipped with an oil cooler that mounted under the radiator and was a popular upgrade for E36 owners in the US. Unfortunately, BMW discontinued the oil cooler and they have become harder and harder to find. BimmerWorld reached out to CSF to design a replacement unit that would fit exactly like the factory unit but perform even better.

Features

• Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow
• Fully TIG-Welded Extruded End Tank Design for Superior Reliability & Durability
• Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available
• 6 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design
• Designed to Work with OE & CSF All-Aluminum Radiator (CSF #3054)
• OE Style Black Finish
• Accepts Factory Oil-Line Connections
• Accepts Factory Oil-Line Connections
• Mounts using OE Brackets
• Uses OE E36 Euro Spec Oil Cooler Lines (Pipe) – BMW PN: 17212227235

Compatibility

Applications:

• 1992-1999 BMW E36 3-Series (including M3)


OEM Part Numbers:

• BMW: 17212244084
  • Superseded:
    • BMW: 17212244083


Compatibility Check

Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.

Part Number

CSF-8301

More Information

Manufactured by

CSF Radiators
