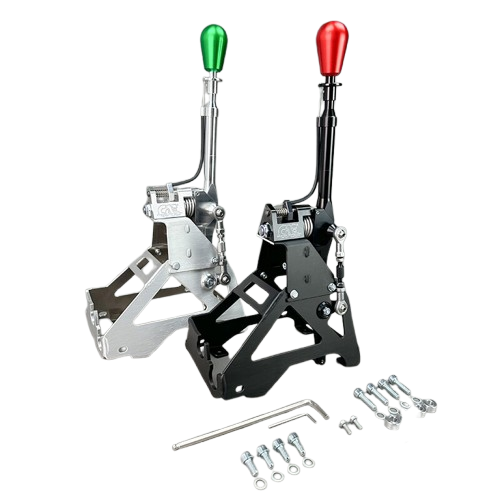

CAE Toyota GR Yaris Ultra Shifter

Description

CAE Ultra Shifter for the Toyota GR Yaris - optimised for motorsport.

All shifters with supplied with anodised aluminium gear lever knob in the following colours: titanium grey (standard), blue, red, black, silver, orange, green, purple or gold; or black/white plastic.

Features

• Vehicle-specific shifter kit, using original shifter cables

• Short and super-precise shifting travel, exclusively H-pattern

• Racing-style appearance

• Characterised by its optimal ergonomics with a focus on motorsports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 70 x 55 mm

• Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever

• Low weight and high stability: the CNC milled and turned parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the TIG welding process and brushed blank for an optimal finish

• Problem-free shifting of gears under stress or in curves

• Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down

• Right/left stops and reverse gear stop adjustable separately

• Simple installation through complete conversion kit and two-piece construction; all systems are delivered with all small parts, fastening material and detailed installation instructions

Specifications

• Total height: approx. 390 mm

• Total length: approx. 235 mm

• Dimensions of base plate: approx. 235 x 125 mm

• Shifting travel: approx. 70 mm

• Selector travel (transverse direction): approx. 55 mm

• Weight (complete): approx. 1,05 kg

• Offset of the gear lever knop (back / up): depending on vehicle type approx. 20 / 100 mm

Compatibility

Toyota GR Yaris 1.6 (2020+)

Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

Installation

Part Number

10084-ALU (Plain Aluminium)

10084-EXS (Black Anodised)
