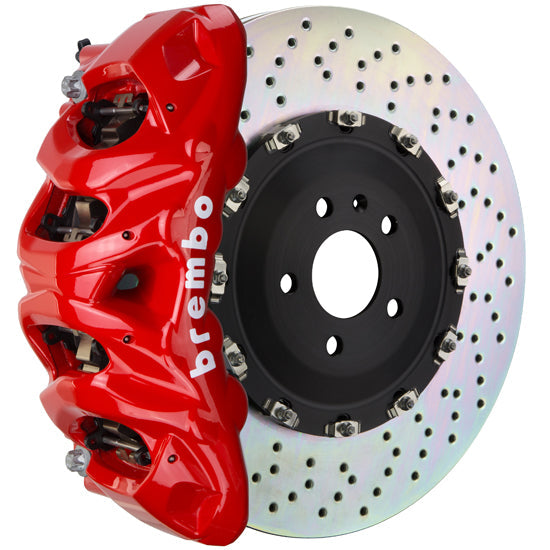

Brembo 1Q-.9609A 8-Piston Cast Monobloc Calipers 412x38mm (16.2") 2-Piece Discs Brake Disc (Front)

Description

This is 8-Piston Cast Monobloc Calipers | 412x38mm (16.2") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included, Front



Features

Caliper

Caliper Body	:	Cast Monobloc Radial Mount
Caliper Piston Configuration	:	8-Piston
Caliper Piston Design And Insert Type	:	Inner Pressure Seal / OEM Approved Dust Boot

Disc

Disc Material/Finish	:	Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter	:	328mm
Disc Width (Measurement)	:	28mm
Disc Air Gap (Measurement)	:	17mm
Disc Annulus (Measurement)	:	54mm
Disc Construction	:	2-Piece Disc Assembly
Disc Vane Design (Measurement)	:	Vented Curved 48 Vane
Disc To Hat Mounting System	:	Floating D-Bobbin with Anti Rattle Spring

Friction Material

Pad Compound	:	Brembo High Performance FM1000
Pad Volume / Surface Area	:	48.2 | 53.6



What's Included

• Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
• Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation





Compatibility

Feel free to contact us at info@Performance Parts Direct.co.uk should you wish to double check!



Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



Part Number

BREMBO-1Q1.9609A2 (Cross Drilled / Red)

BREMBO-1Q1.9609A1 (Cross Drilled / Black)

BREMBO-1Q1.9609A5 (Cross Drilled / Yellow)

BREMBO-1Q1.9609A6 (Cross Drilled / White)

BREMBO-1Q1.9609A7 (Cross Drilled / Fluorescent Yellow)



More Information

Manufactured by

Brembo
