BLUE SEA

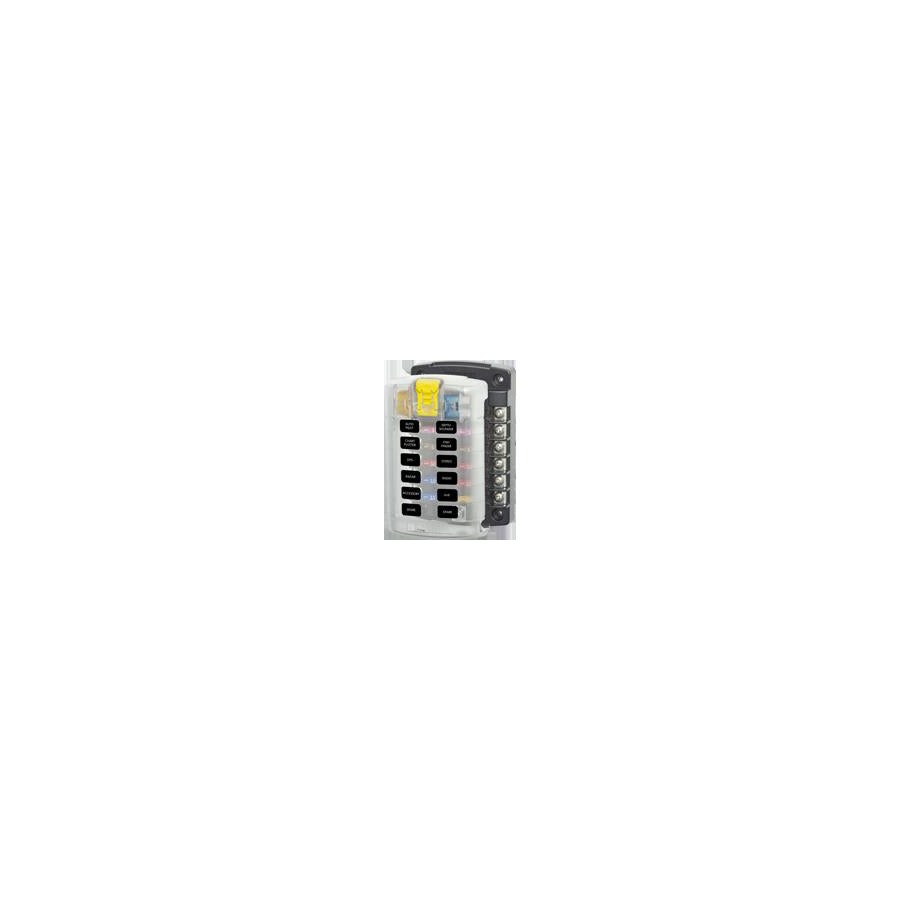

Blue Sea Systems Fuse Block ST-Blade 12 Circuits with Grounding/cvr - 5026B-BSS
SKU: BLUE-SEA-5026B-BSS
Price
£44.55
inc. VAT
Best Price Across the UK
Best Value
In Stock — Dispatched in 24 hrs
Description
- Consolidates branch circuits and in-line fuses.
- Positive distribution bus with 10-32 stud.
- Can be used for 24-hour circuits.
- Models available with or without a cover.
- Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems".
- Small Format Labels for circuit identification.
- Tin-plated copper buses and fuse clips.
- Accepts ring or snap fork type terminals.
- Accepts ATO and ATC fast acting blade fuses.
- Fuses sold separately.
Features
Specification
| Varta Long Code | : | Circuits |
| Circuits | : | 12 |
| Maximum Amperage | : | 100A per block, 30A per circuit |
| Recommended Ring Terminal | : | Circuits |
| Maximum Voltage | : | 32VDC |
| Mounting | : | 8 Screw (M4) |
| Negative Bus | : | 10-32 Stud |
| Positive Bus | : | 10-32 Stud |
| Screw Terminal Torque | : | 18 in-lb |
| Screw Terminal Type | : | 8-32 Screws with captive star lock washer |
| Warranty | : | 2 Years |
Compatibility
Please make sure your current battery has the matching required specification to ensure a like for like replacement.
Compatibility Check
Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car information before proceeding to checkout.
Part Number
BLUE SEA-5026B-BSS
More Information
Manufactured by
BLUE SEA
