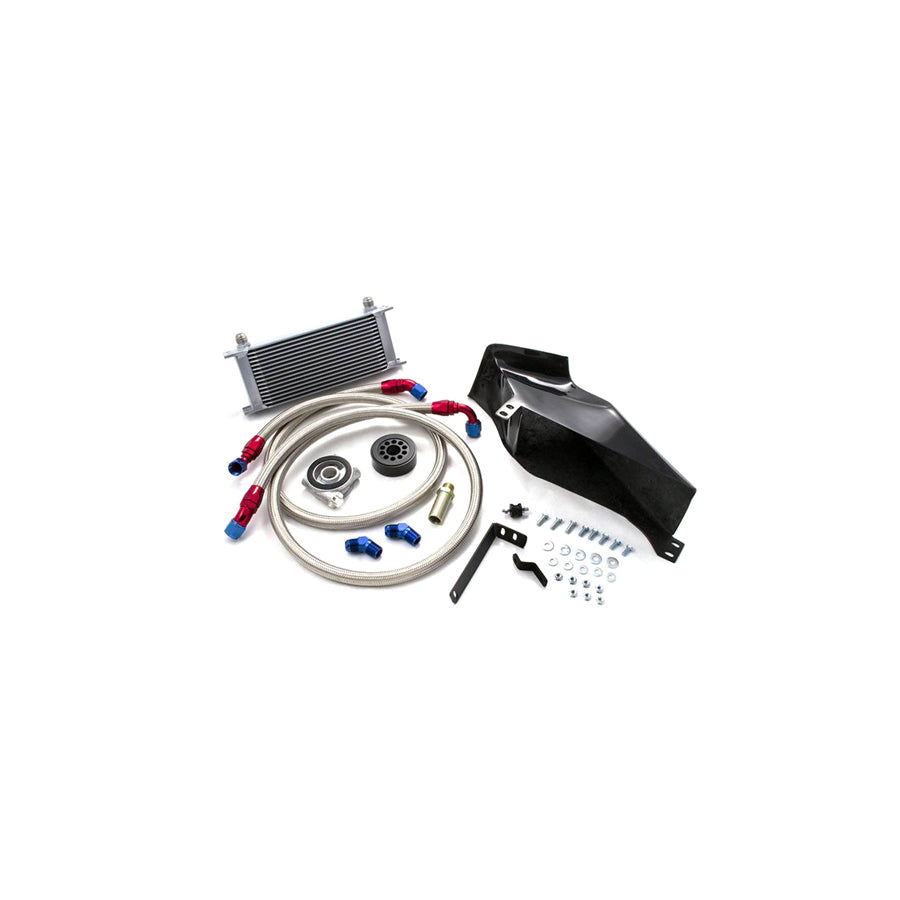

AVO Turboworld Subaru Toyota Engine Oil Cooler Kit (BRZ & GT86)

Description

AVOTurboworld's Oil Cooler Kit for the Subaru BRZ, Scion FR-S, and Toyota GT86 is a highly engineered solution to your cooling needs. Designed for maximum efficiency and reliability, it's been tested thoroughly at the track in the toughest of conditions. Careful thought and engineering went into not just the oil cooler itself, but the placement of it to maximise the cooling efficiency. An air duct is included that routes the air from the front grill opening to ensure air flow at speed. The duct is designed to work with the AVO turbocharger kit piping as well!

We use a thermostatic plate designed to activate at 85-90 degrees Celcius (185-190 degrees F), this is to ensure proper oil temperatures during winter conditions. Once installed at the track, we saw constant oil temperatures exactly matching the water temperature even with extensive lapping.

Features

• Thermostatically controlled to activate at 85-90 degrees Celcius (185-190 degrees F).

• AN -10 Braided Steel Lines with a swivel incorporated into the fittings for ease of install.

• Oil cooler size. H 125mm x L 290mm x W 50mm

• 14 Row Cooling Unit

• Steel mounting brackets with rubber vibration isolator.

• Will fit with AVO turbo kits and N/A cars.

• Air duct will fit with the standard bumpers on the BRZ, FR-S, and GT86.

• Comes with all necessary hardware.

• Will fit with OEM foglights.

Compatibility

• Subaru BRZ 2.0 (2012 - Present)
• Toyota GT86 2.0 (2012 - Present)

Turbo, supercharged or NA

Part Number

S6Z12EYAA001A

More Information

Manufactured by

AVO Turboworld

Warranty

Two years manufacturer warranty
